Solid Carbide End Mills

HRC50 Solid Carbide End Mills

Dimension: Φ2–Φ20
Material: Carbide+PVD Coating
Application: Metal Cutting
Non-standard: Customization is Acceptable
Product description: H50 series solid carbide end mills are suitable for machining of steel below HRC50, cast iron and stainless steel.
INQUIRY

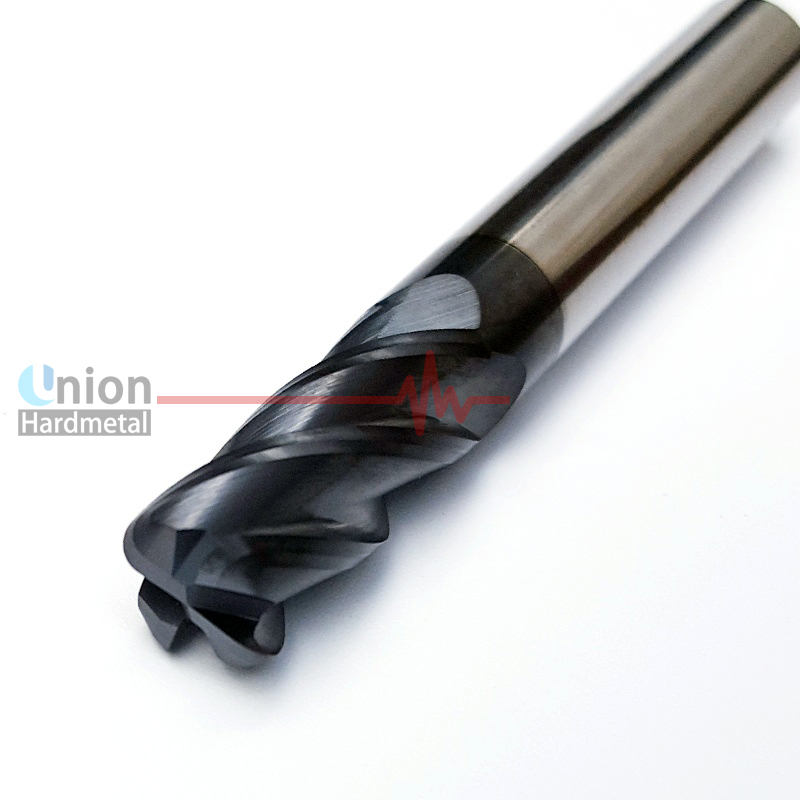

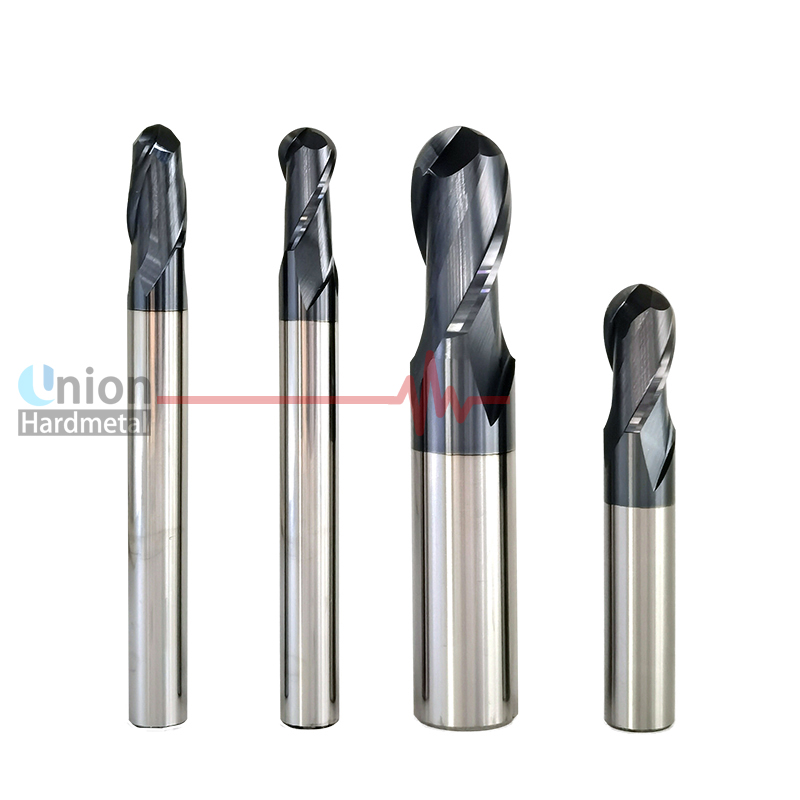

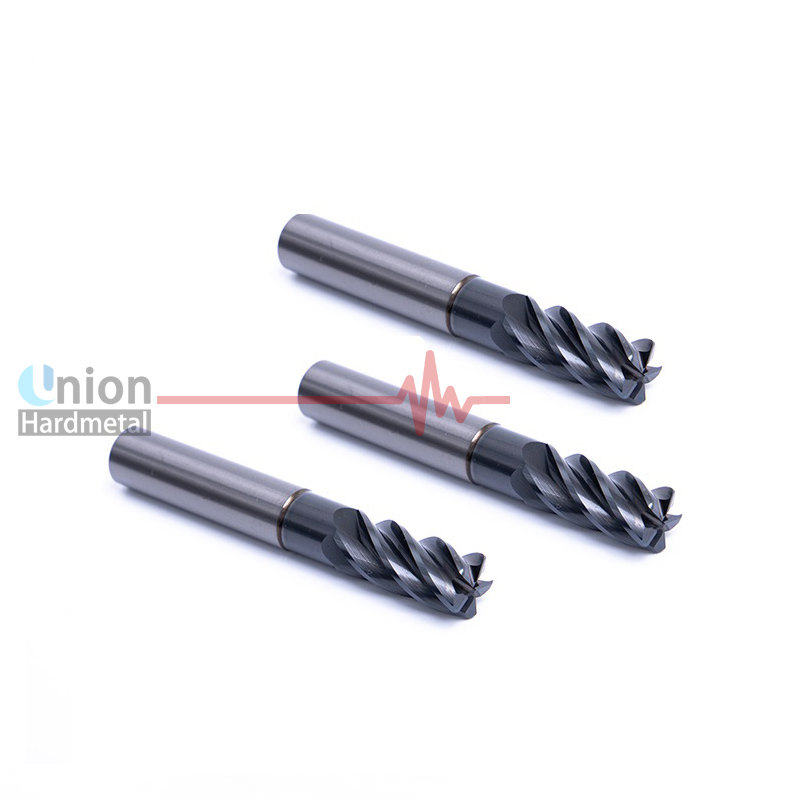

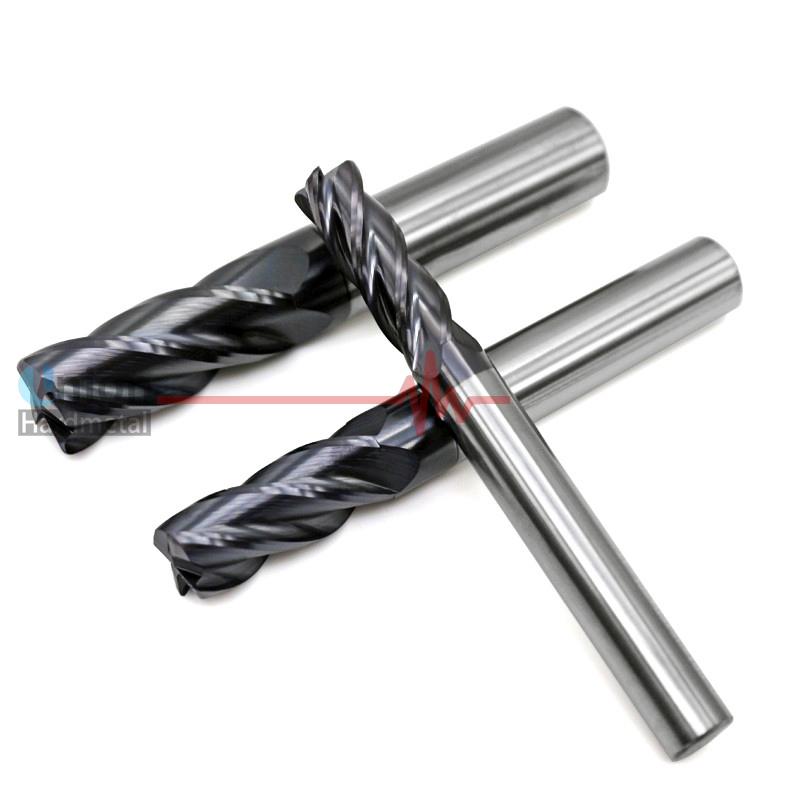

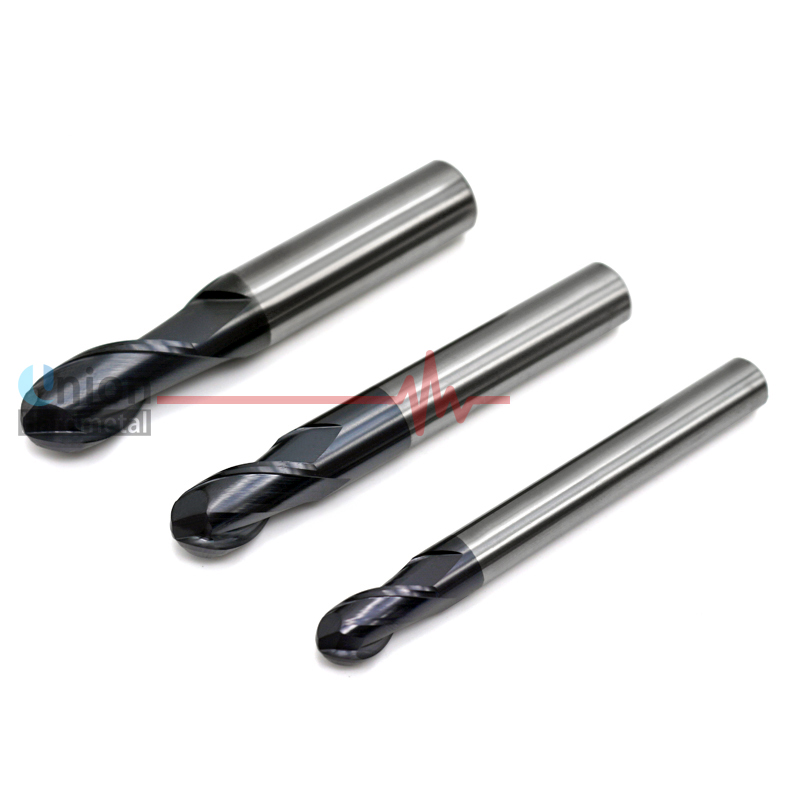

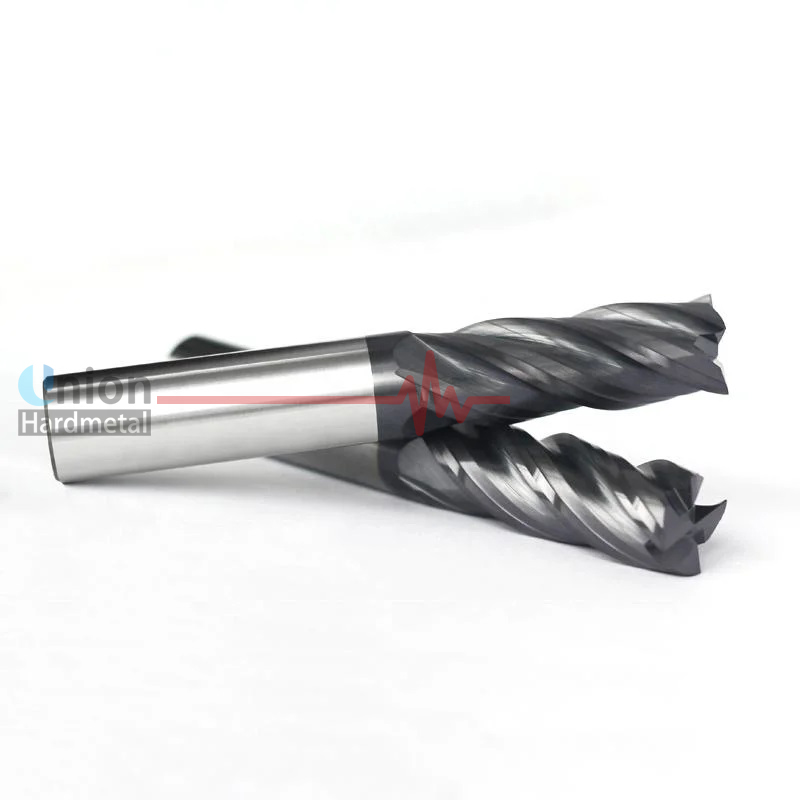

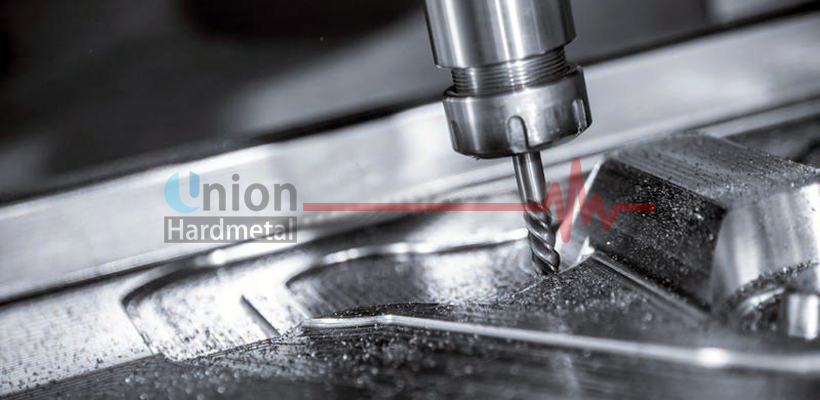

H50 series solid carbide end mills are suitable for machining of steel below HRC50, cast iron and stainless steel. H50 series include flatted edge, radius nose and ball nose structure, 2 flutes end mills have large chip space, and 4 flutes end mills have high processing efficiency. The tools adopt 0.6-0.8um fine grain size, high toughness and high performance carbide rods. TiAlN coating has high wear-resistant, which has long tool life to meet the application conditions from rough machining to finish machining. H50 series are the best choice to reduce the time of changing tools, and improve the processing efficiency.

solid carbide end mills for steel below HRC50, cast iron and stainless steel

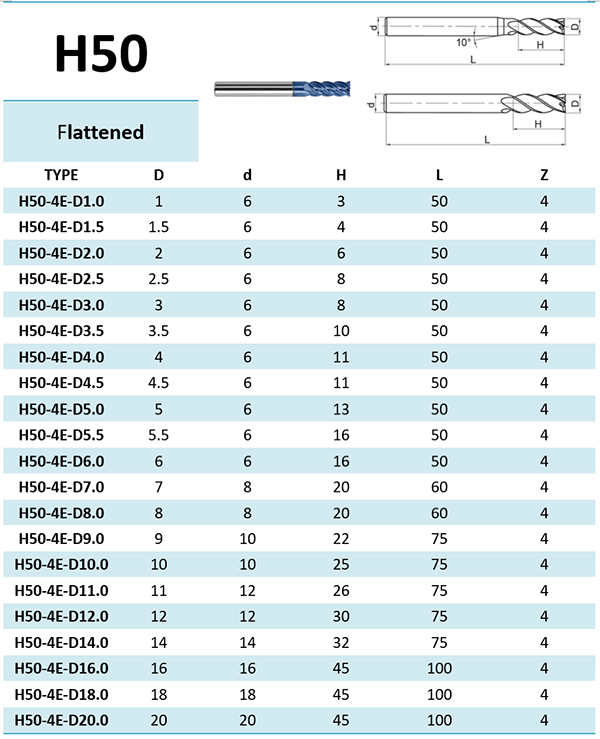

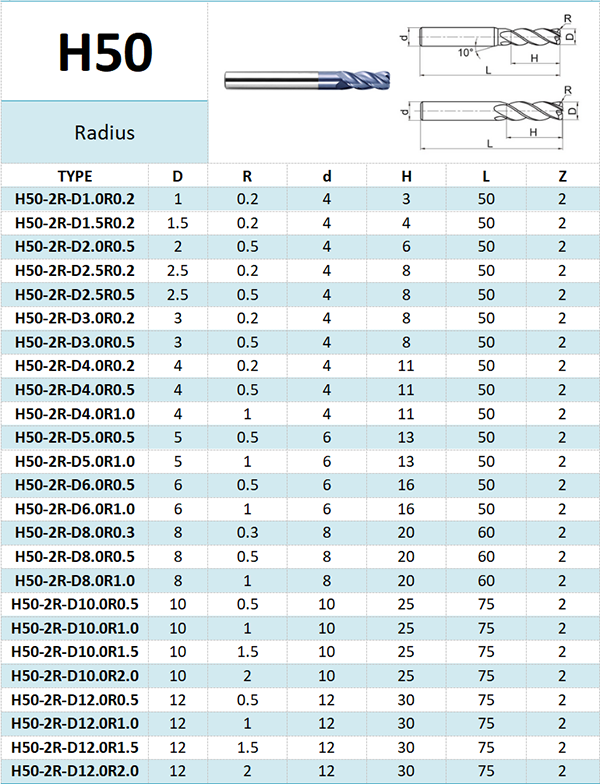

Specification

Union Hardmetal manufactures high performance and high quality solid carbide end mills, forming a series of products. More specifications can be choosed can choose according to customers needs. More models please consult customer service, we are dedicated to provide you with service.
