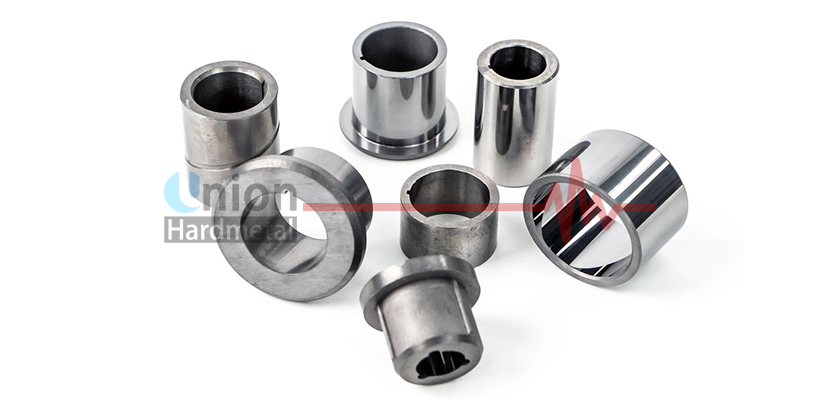

Carbide Bushings

Carbide Bushings/Sleeves

Specification: Φ12–Φ150
Material: Tungsten Carbide YG/YN
Application: Wear Resistance and Corrosion Resistance
Non-standard: Customization is Acceptable
Product description: Precious tungsten carbide bushings for oil and natural gas industry. Straight and T-shaped structure were supplied. YG and YN carbide to meet the needs of wear-resistant and corrosion-resistant.
INQUIRY

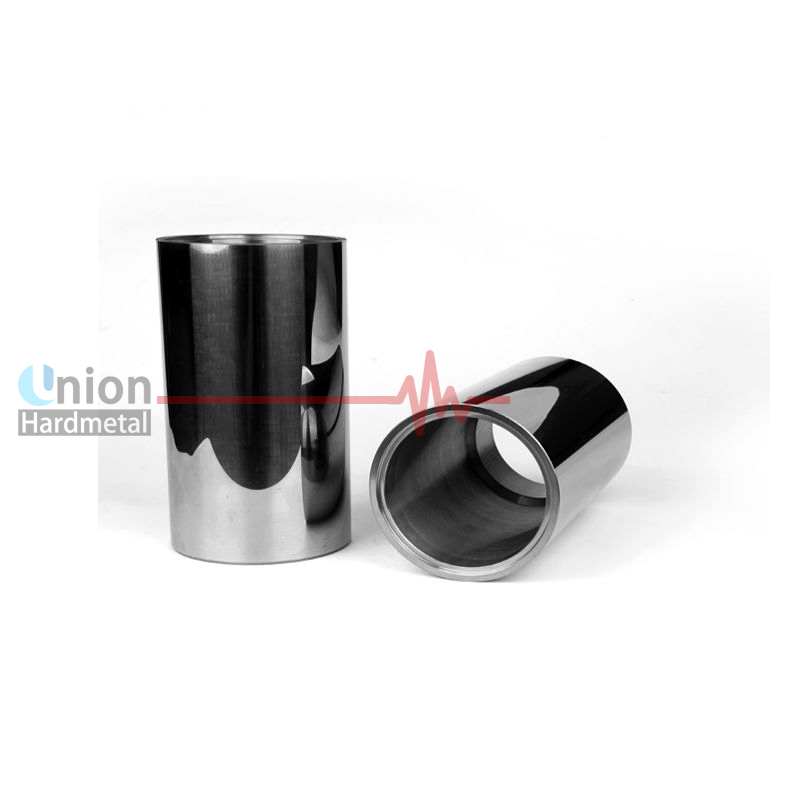

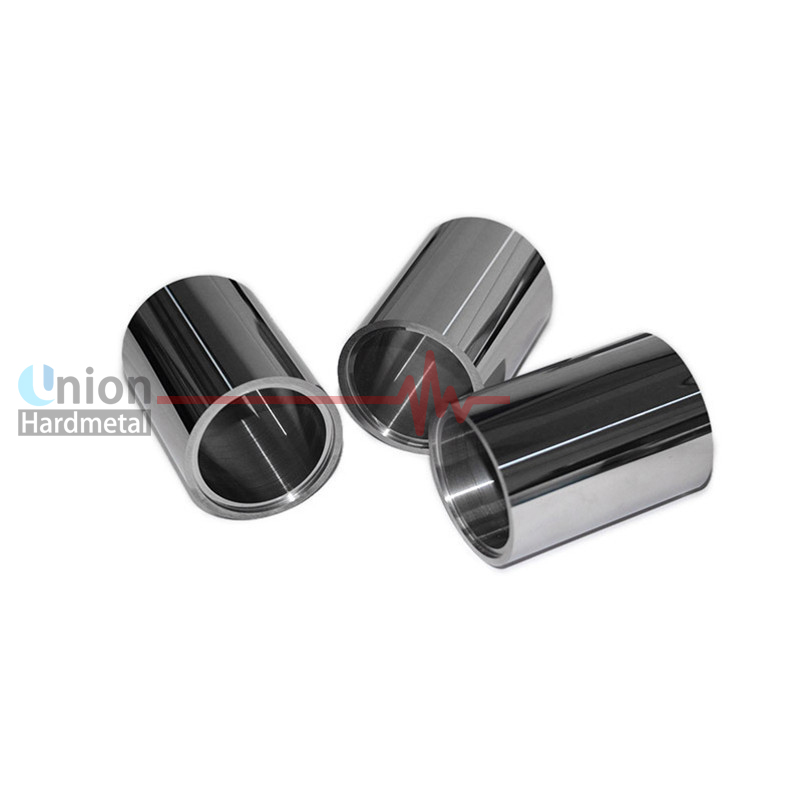

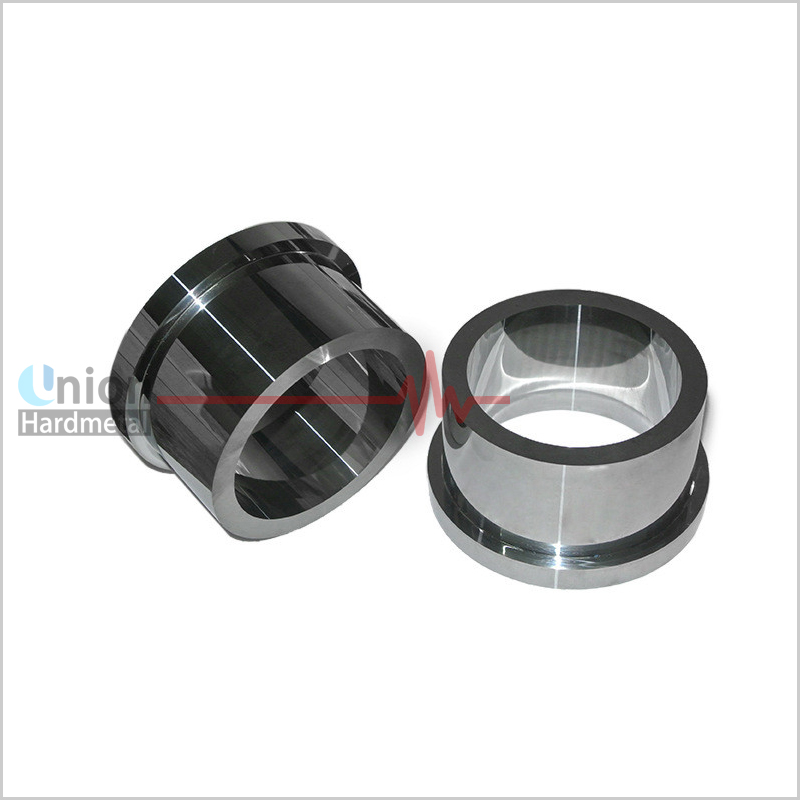

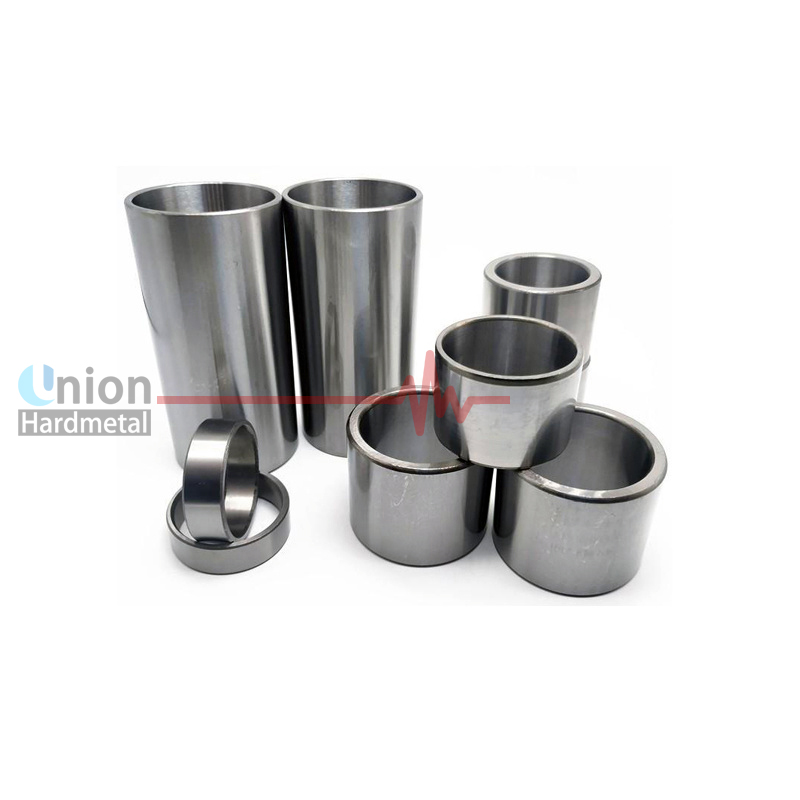

Tungsten Carbide bushing is also called as Carbide Sleeve. It is often used in the water pumps, oil pumps, and other pumps, especially used for high pressure or corrosion resistance pumps. Flow restrictors, servo seats, and other sealing components need tungsten carbide bushings. For its specific uses, tungsten carbide bushings are often made with high accuracy, perfect finish, precise dimension, durability and corrosion resistance, these are highly appreciated by the clients all around the world.
Most specifications of carbide bushings are customized, Union Hardmetal has rich industry knowledge and experience in the production of various hard alloy bushings, can produce a variety of high wear resistant carbide bushings according to the specific design.

Specification

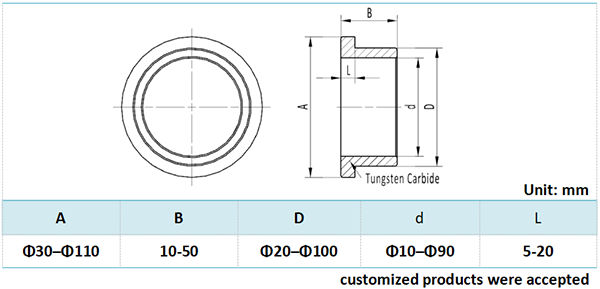

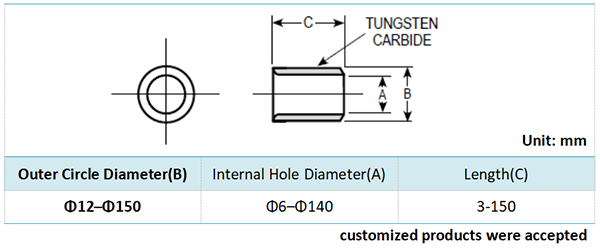

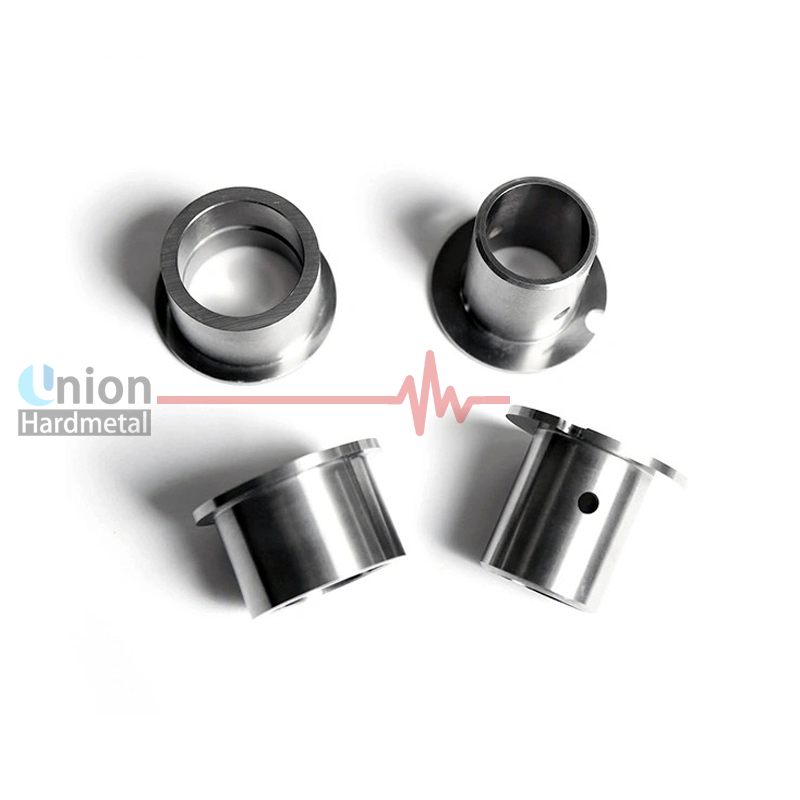

Union Hardmetal manufactures straight structure, T-shaped structure and non-standard structure carbide bushings. The common dimension of straight structure and T-shaped structure carbide bushings as follow:
