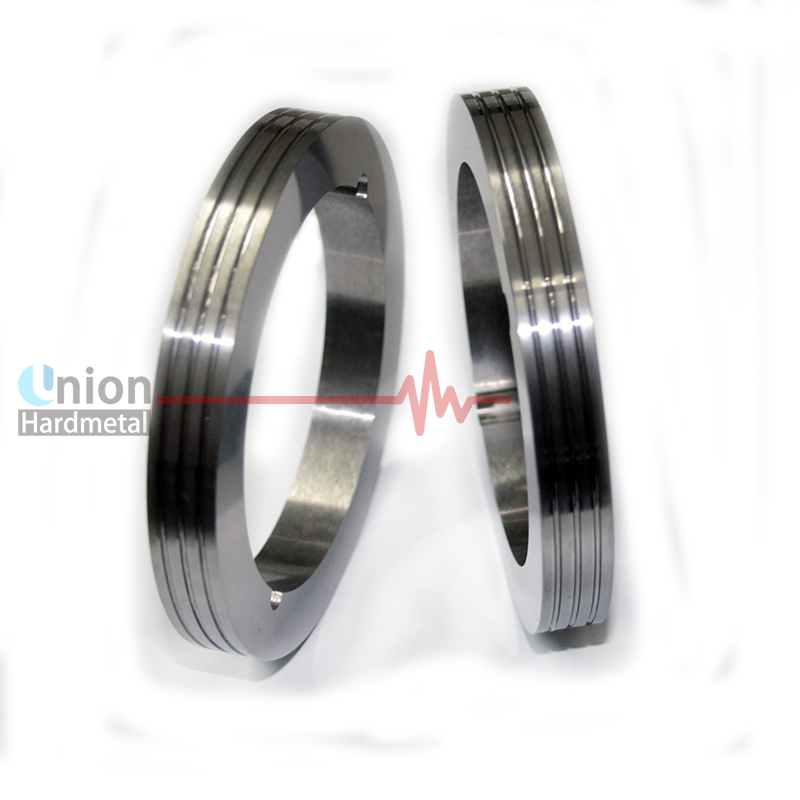

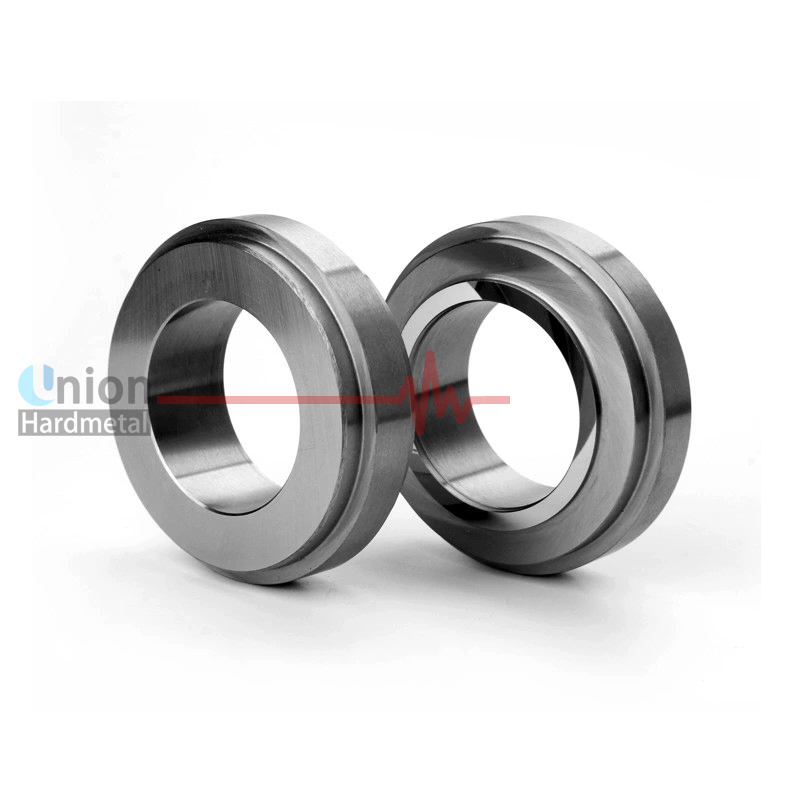

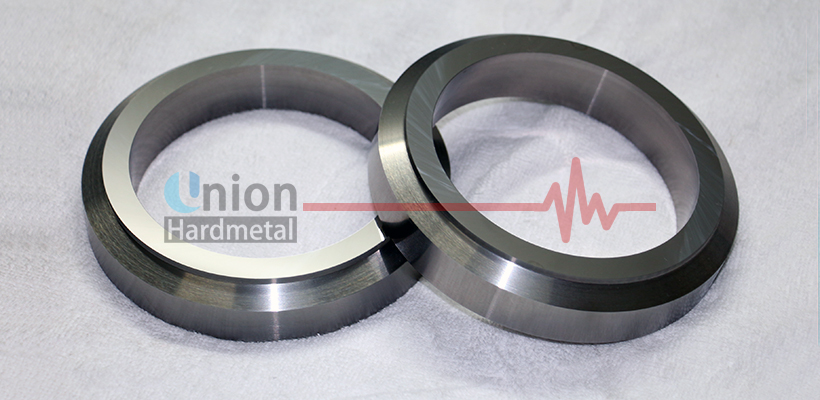

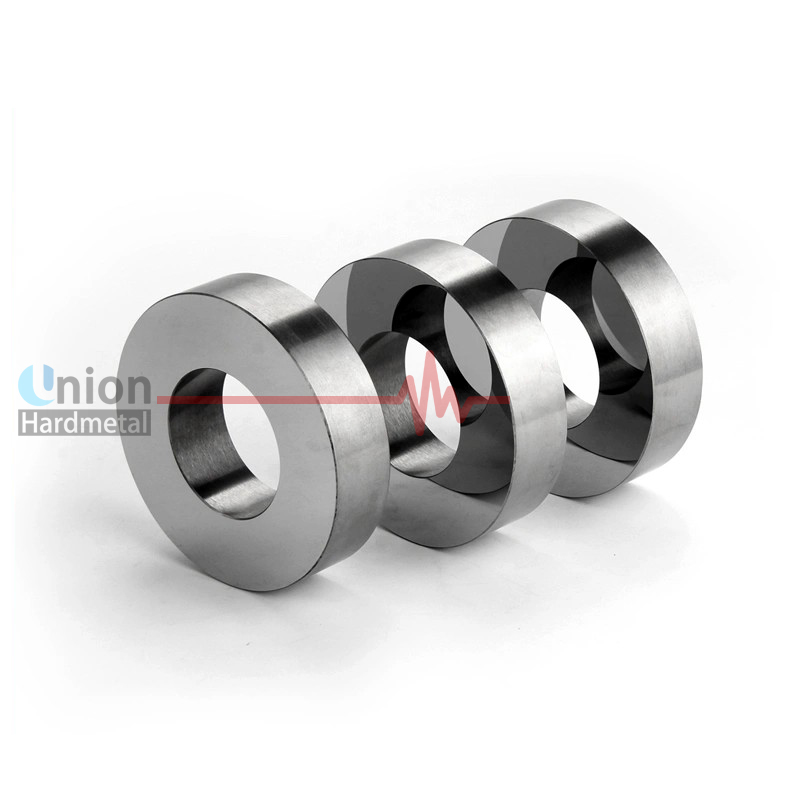

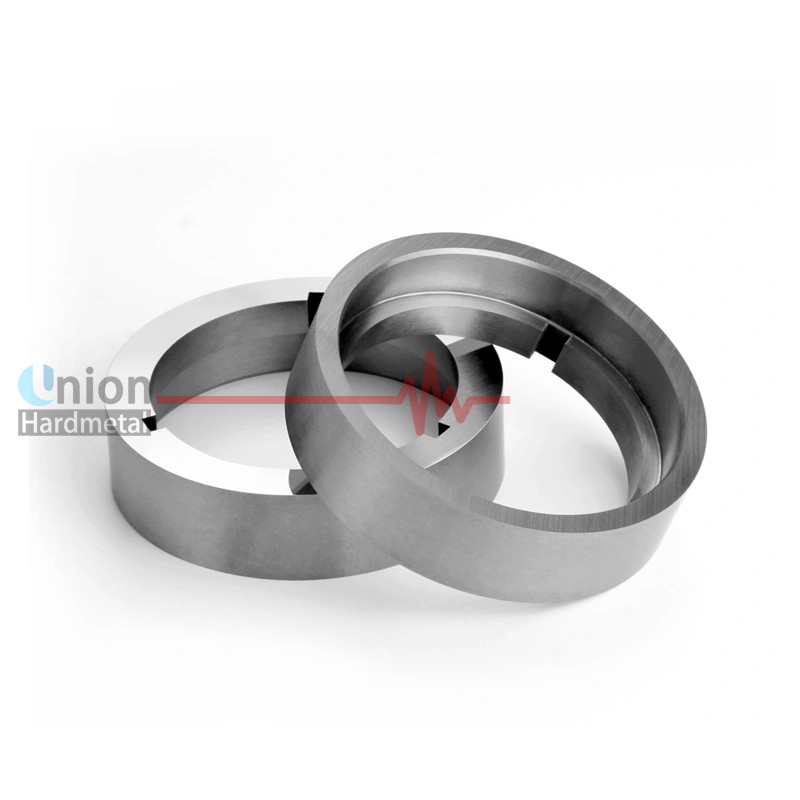

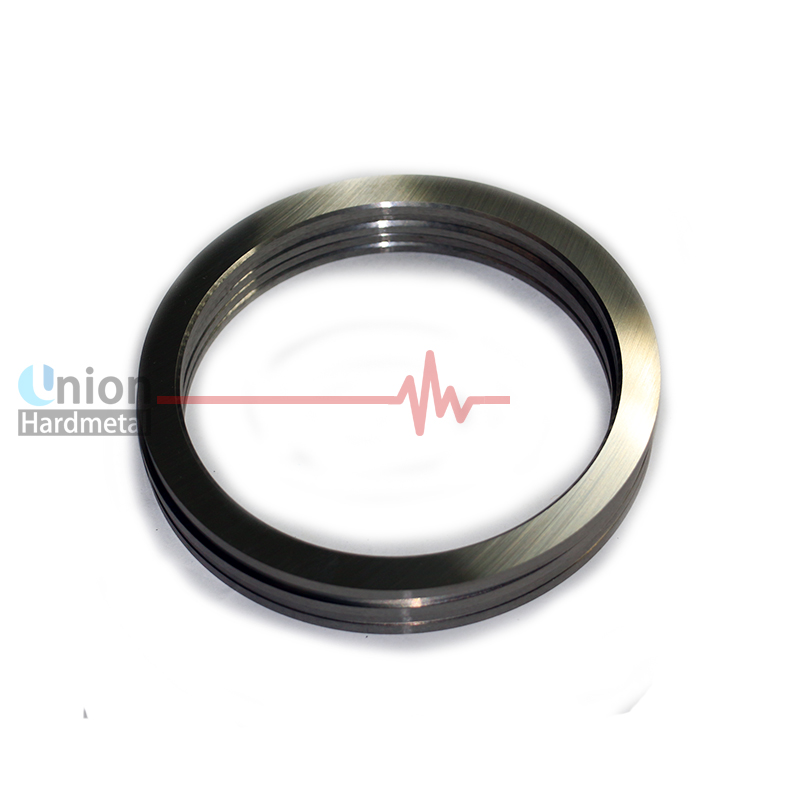

Carbide Seal Rings

Tungsten Carbide Sealing Rings

Specification: Φ10–Φ600
Material: Tungsten Carbide YG/YN
Application: Wear Resistance and Corrosion Resistance
Non-standard: Customization is Acceptable
Product description: Precious tungsten carbide sealing rings for oil and natural gas industry. YG and YN carbide to meet the needs of wear-resistant and corrosion-resistant.
INQUIRY

Cemented carbide sealing rings have excellent properties such as good wear resistance, high thermal conductivity, low friction coefficient, small expansion coefficient, acid resistance, alkali resistance, corrosion resistance，which make it an ideal material for mechanical seals.
The mechanical sealing rings are used to seal the clearance between the rotating shaft and the stationary housing in equipment such as pumps and mixers so that liquid can not leak out through this clearance.Tungsten carbide sealing rings are widely used as seal faces in various pumps and seals, or compressors and agitators.
Most specifications of carbide sealing rings are customized, Union Hardmetal has rich industry knowledge and experience in the production of hard alloy, can produce a variety of high wear resistant carbide sealing rings according to the specific design.

Specification

Union Hardmetal manufactures straight structure, T-shaped structure and non-standard structure carbide bushings. The common dimension of straight structure and T-shaped structure carbide bushings as follow:
